Description

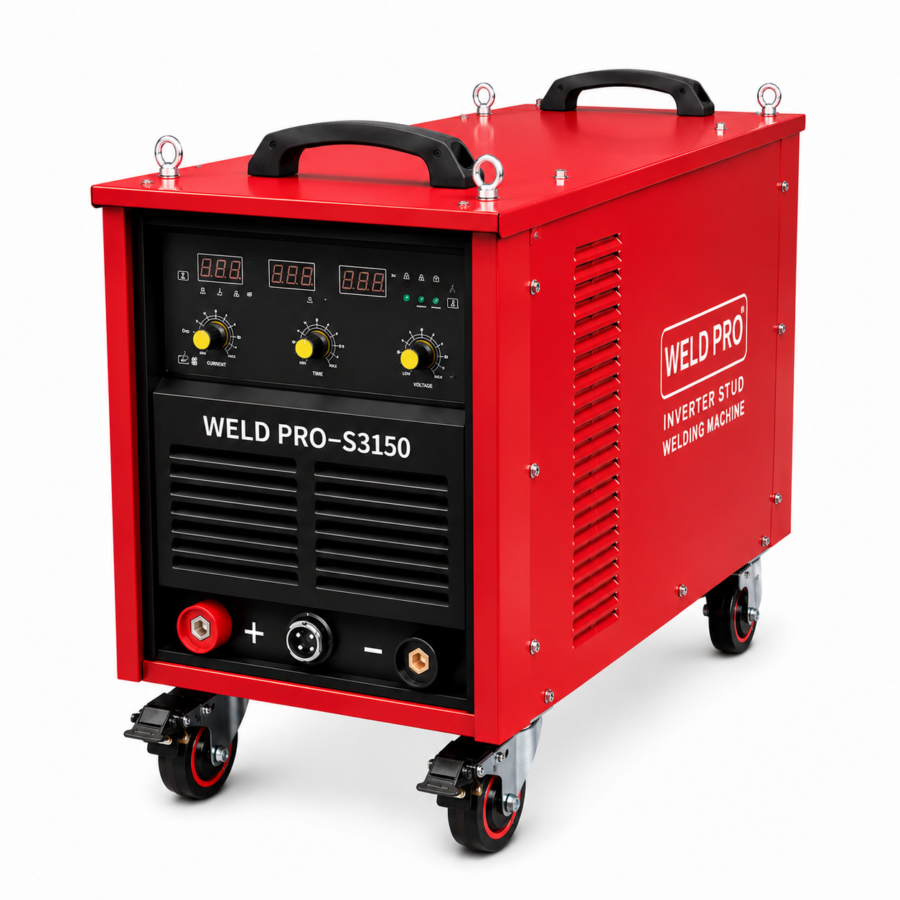

The WELD PRO-S3150 is the most powerful model in the WELD PRO Series, engineered for large stud welding diameters and demanding industrial applications. Designed for heavy structural fabrication, power plants, shipbuilding, oil & gas projects, steel manufacturing, and infrastructure development, it offers maximum welding power with exceptional reliability.
| Specification | Value |
|---|---|
| Product Model | WELD PRO-S3150 |
| Welding Range | Φ3mm – Φ32mm |
| Welding Current | 200A – 3150A |
| Welding Time | 0.1 – 3.0 Seconds |
| Welding Speed | 10–30 Pieces/Minute |
| Welding Material | Low Carbon Steel, Stainless Steel, Galvanized Steel, Alloy Steel, Copper, Aluminum |
| Input Voltage | AC 3-380V ±15% |
| Wide Voltage Design | AC 3-280V–440V |
| Rated Input Capacity | 110KW |
| Power Switch | 225A |
| Power Cord | 3×25mm² + 1 |
| Protection Level | IP23 |
| Insulation Class | H |
| Cooling Method | F |
| Machine Dimensions | 980 × 410 × 750 mm |
| Weight | 155 kg |
