Description

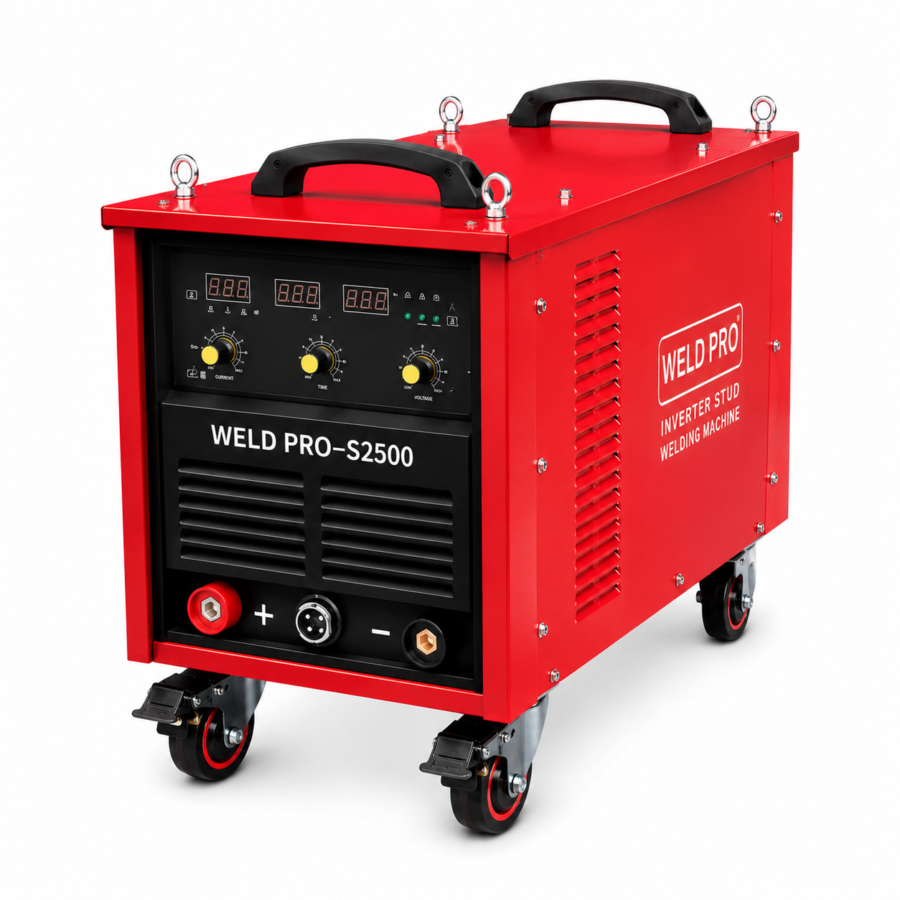

The WELD PRO-S2500 is designed for high-output industrial stud welding. It combines advanced inverter technology with powerful welding current to ensure excellent penetration and consistent weld quality. This machine is ideal for fabrication companies, infrastructure projects, bridge construction, steel buildings, shipyards, and heavy engineering industries.
| Specification | Value |
|---|---|
| Product Model | WELD PRO-S2500 |
| Welding Range | Φ3mm – Φ28mm |
| Welding Current | 200A – 2500A |
| Welding Time | 0.1 – 3.0 Seconds |
| Welding Speed | 10–30 Pieces/Minute |
| Welding Material | Low Carbon Steel, Stainless Steel, Galvanized Steel, Alloy Steel, Copper, Aluminum |
| Input Voltage | AC 3-380V ±15% |
| Wide Voltage Design | AC 3-280V–440V |
| Rated Input Capacity | 85KW |
| Power Switch | 160A |
| Power Cord | 3×16mm² + 1 |
| Protection Level | IP23 |
| Insulation Class | H |
| Cooling Method | F |
| Machine Dimensions | 910 × 410 × 465 mm |
| Weight | 92 kg |
